DermFormer: Nested Multi-modal Vision Transformers for Robust Skin Cancer Detection.

Project Overview

DermFormer is a transformer-based multi-modal architecture for robust skin cancer detection that maintains high diagnostic accuracy while demonstrating resilience to real-world data variations. Published in Pattern Analysis and Applications (Springer Nature, 2025), this work addresses critical challenges in deploying AI systems for clinical dermatology.

Key Achievement

• State-of-the-art Performance: 0.779 diagnosis accuracy, 0.684 F-score on Derm7pt dataset
• Superior Robustness: Maintains performance under realistic corruptions (noise, blur, compression)
• Multi-modal Integration: Combines dermoscopic images, clinical images, and patient metadata
• Clinical Relevance: Addresses adoption barriers for automated diagnostic systems

The Problem

While deep learning shows strong potential for automated skin cancer detection, clinical adoption faces a critical challenge: models often improve accuracy on pristine lab data while compromising reliability under the corrupted or noisy inputs typical of real-world settings. Existing multi-modal fusion strategies inadequately address this performance-robustness trade-off.

Our Solution

DermFormer introduces two key innovations:

1. Entropy-Weighted Ensemble Classification

Dynamic adjustment of modality contributions based on prediction confidence, enabling intelligent feature selection when individual modalities are corrupted or unreliable.

2. Hybrid Fusion Mechanism

Preserves uni-modal representations while capturing inter-modality relationships through:

• Hierarchical transformers for each modality
• Cross-attention for modality integration
• Nested architecture design for feature extraction at multiple scales

Technical Architecture

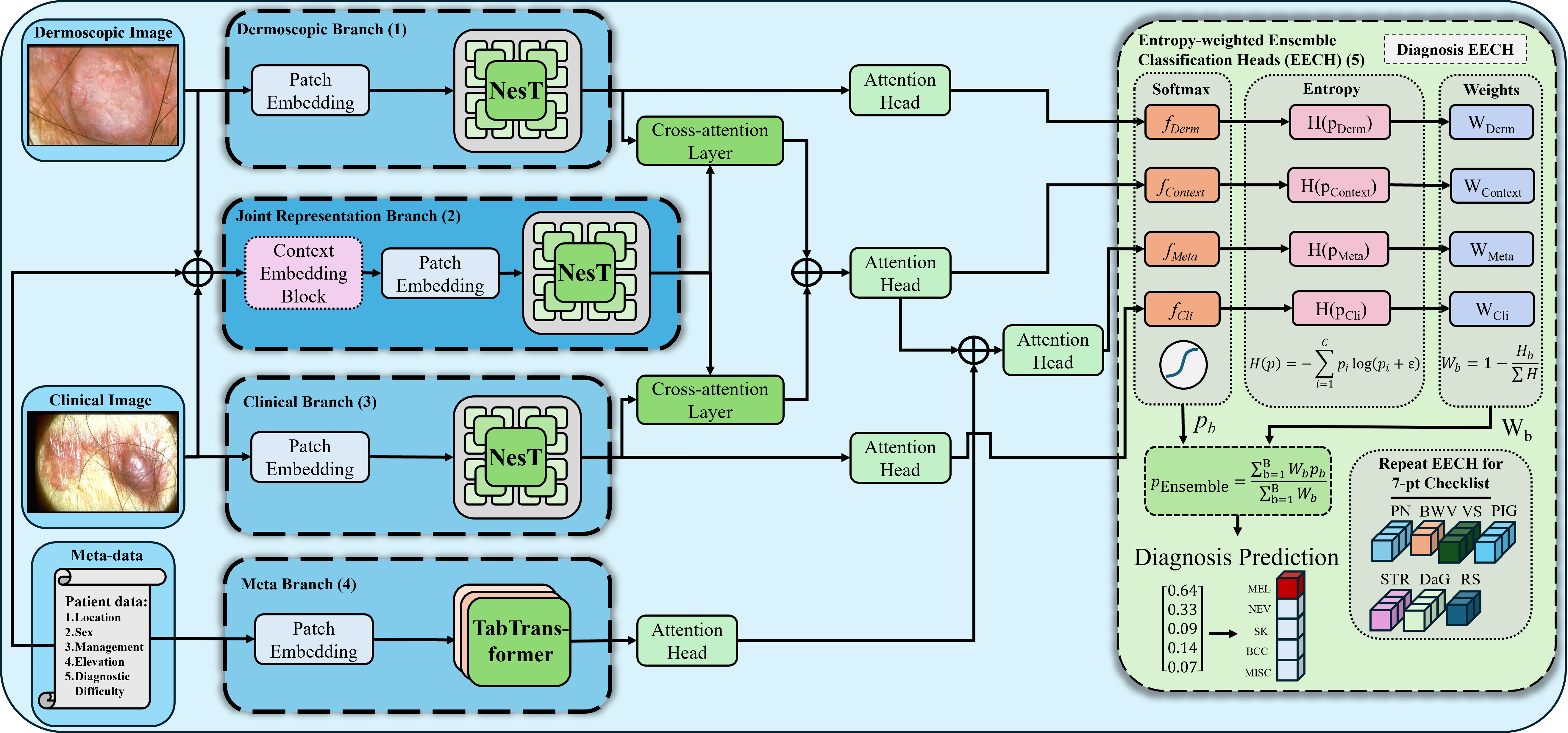

Figure 1. DermFormer architecture. Four parallel branches process dermoscopic images, clinical images, a joint context representation, and patient metadata through NeST/TabTransformer encoders with cross-attention fusion. Branch-level predictions are combined via entropy-weighted ensemble classification heads (EECH), applied to both diagnosis and 7-point checklist tasks.

Multi-modal Input Processing

• Dermoscopic Images: High-resolution skin lesion images (1024×1024)
• Clinical Images: Standard camera photos showing broader context
• Tabular Metadata: Patient demographics, lesion location, characteristics

Model Components

1. NeST Vision Transformers: Hierarchical feature extraction from images
2. Tabular Encoder: Dense networks for metadata processing
3. Cross-Modal Attention: Bidirectional information flow between modalities
4. Entropy-Weighted Ensemble: Confidence-based dynamic fusion

Multi-task Learning

Simultaneous prediction of:

• Primary diagnosis (5 classes: melanoma, basal cell carcinoma, etc.)
• Seven-point checklist criteria (clinical assessment features)

Experimental Validation

Dataset

Derm7pt: Specialized dermoscopy dataset with multi-modal data and comprehensive annotations

• Training: 403 cases
• Validation: 202 cases
• Test: 403 cases

Performance Metrics

Robustness Testing

DermFormer was systematically evaluated under 18 types of common corruptions across 5 severity levels:

Corruption Categories:

• Noise: Gaussian, shot, impulse
• Blur: Defocus, motion, zoom, glass
• Weather: Snow, frost, fog, brightness
• Digital: JPEG compression, pixelation, elastic transform, contrast

Key Finding: DermFormer maintains superior performance compared to baseline architectures even under severe corruptions, demonstrating true clinical viability.

Interactive Demonstrations

Demo 1: Interactive Inference

Explore DermFormer’s multi-modal inference pipeline with real Derm7pt cases. Interact with the demo below or open in full screen.

What You’ll See:

• Multi-task prediction outputs for all 8 classification tasks
• Branch-level analysis (Clinical, Dermoscopic, Combined, Meta-Combined)
• Entropy weighting visualization
• Confidence scores and uncertainty quantification

Demo 2: Robustness Analysis

Systematic evaluation of model resilience to real-world variations. Interact with the demo below or open in full screen.

Insights Demonstrated:

• Performance maintained under realistic clinical conditions
• Entropy weighting enables graceful degradation
• Multi-modal fusion provides redundancy and resilience

Research Contributions

1. Novel Architecture: First entropy-weighted ensemble for multi-modal medical imaging
2. Robustness Framework: Comprehensive evaluation methodology for clinical AI
3. State-of-the-art Results: Best reported performance on Derm7pt benchmark
4. Open Source: Complete implementation, trained models, and reproducible experiments

Clinical Impact

By maintaining performance under realistic clinical conditions, DermFormer addresses a critical adoption barrier for automated diagnostic systems:

• Earlier Detection: Enables screening in resource-limited settings
• Reduced Variability: Consistent performance across imaging conditions
• Clinical Trust: Transparent, interpretable predictions with uncertainty
• Scalability: Supports melanoma detection at scale across diverse healthcare settings

Technical Skills Demonstrated

• Deep Learning: Custom transformer architectures, attention mechanisms
• Medical AI: Multi-modal fusion, clinical evaluation protocols
• Computer Vision: Image preprocessing, augmentation, feature extraction
• Ensemble Learning: Confidence-based dynamic weighting strategies
• Research Methodology: Systematic experimentation, statistical validation
• Software Engineering: Modular codebase, reproducible research practices

Future Directions

• Federated Learning: Privacy-preserving multi-institutional model training
• Few-Shot Adaptation: Rapid specialization to new lesion types or populations
• Explainability: Visual attention maps and decision justifications
• Clinical Deployment: Web-based diagnostic assistance tool
• Dataset Expansion: Integration with HAM10000, ISIC archives

Open Source & Reproducibility

All components of this research are publicly available:

• Complete Source Code: Training, inference, evaluation scripts
• Trained Models: Best checkpoint (211MB) available for download
• Interactive Demos: Jupyter notebooks with example cases
• Documentation: Comprehensive README, API docs, tutorials
• Experimental Protocol: Hyperparameters, data splits, evaluation metrics

Reproducibility Standards Met:

• Fixed random seeds for deterministic results
• Environment files (conda, pip requirements)
• Unit tests and validation procedures
• Detailed experimental logs

Publication Details

Cockayne, M. J., Ortolani, M., & Al-Bander, B. (2025). DermFormer: Nested Multi-modal Vision Transformers for Robust Skin Cancer Detection. Pattern Analysis and Applications, 28(4), 194. https://doi.org/10.1007/s10044-025-01572-0

Citation:

@article{cockayne_dermformer_2025,
  title = {DermFormer: nested multi-modal vision transformers for robust skin cancer detection},
  author = {Cockayne, Matthew J. and Ortolani, Marco and Al-Bander, Baidaa},
  journal = {Pattern Analysis and Applications},
  volume = {28},
  number = {4},
  pages = {194},
  year = {2025},
  doi = {10.1007/s10044-025-01572-0}
}

Recognition

• Published in Pattern Analysis and Applications (Springer Nature)
• State-of-the-art results on Derm7pt benchmark
• Featured in Keele University PhD research showcase
• Open access publication for maximum research impact

This project represents a significant contribution to making AI-assisted dermatology reliable and trustworthy in real-world clinical settings, supporting earlier melanoma detection and improved patient outcomes.

Interested in collaboration or have questions? Contact me to discuss this work further.
